XM7-20

Compact yet Resilient

The XM7-20 is a compact, yet rugged 2-inch (58mm) premium level Auto-ID Mobile Liner and Linerless Label printer featuring an intuitive design and value add software support. A premium level printer, capable of speeds up to 6ips at 203dpi print resolution, it provides a drop protection of 2.1 metres and an IP54 protection rating. Through a smart battery with universal USB Type-C Power delivery charging, this mobile label printer provides a wealth of battery health information through BIXOLON’s web-based printer profile management software XPM™, guaranteeing consistent performance throughout prolonged operations, making it ideal for Logistics, Manufacturing, Retail and Healthcare printing applications.
A high connective device, the XM7-20 presents USB 2-0 and Serial interfaces as standard, with optional Bluetooth V5.0 Classic (MFi Certification) and WLAN 802.11a/b/g/n wireless technology which can be connected simultaneously. Supporting easy Bluetooth pairing via NFC allows compatibility with major operations including Android™, iOS™ and Windows™. The printer also boasts compatibility with market leading command languages such as SLCS, BPL-Z™, BPL-C™ and BXL/POS to allow for seamless integration with customers’ existing systems.
Boasting a 128 MB SRAM, 256 MB Flash memory as standard and optional 256 MB SDRAM, 512 MB Flash memory enabling the storage of fonts and graphics, alongside firmware upgrades and tools. The XM7-20 can print directly from SAP® Smart Forms and is compatible with a range of label editing applications including BIXOLON’s Label Artist™, Label Artist Mobile™ for iOS™ & Android™, alongside the industry leading BarTender® software.

Interested in this product? Let us help you.

Features

Ultimate Printing Capability

– Fully compatible with SLCS, BPL-Z™, BPL-C™ and
BXL / POS : Interchanged without setting the mode
– Fast Liner & Linerless label printing
– Smart Media Detection™
– Anywhere Anyfont™ (Unicode)
– Direct printing from the SAP® Smart Forms
– BIXOLON Profile Manager XPM™, XCM™

Exceptional Mobility

Smart battery providing visibility over status
and life cycle
– Simultaneously connects both Bluetooth 5.0
(MFi certified) and Dual-band WLAN (2.4GHz
and 5GHz)
– Supporting all major operating systems
– Easy Bluetooth Pairing™
– SoftAP : Simple Wi-Fi set up to a mobile device

Compact and Rugged Design

– Built with a large colour display for easy
set-up and battery status management

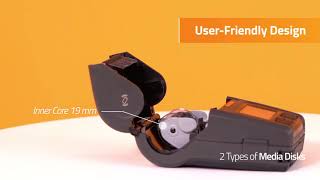

– Embedded peeler and paper guide
– Up to 2.1 m / 7 ft. drop rate
– IP54 water and dust proof
– Enabling USB C-type charging

Specifications

Print Characteristics
Print MethodDirect Thermal
Print Speed"XM7-40: Up to 5 ips (127 mm/sec - Liner, Linerless)XM7-20: Up to 6 ips (152 mm/sec - Liner, Linerless)"
Print Resolution203dpi
Print Width"XM7-40: Up to 104 mm XM7-20: Up to 48 mm "
Sensing"Paper EndGapBlack MarkPaper Cover OpenPeel-off"
Media Characteristics
Media Type"XM7-40: Liner, Linerless (Optional)XM7-20: Liner, Linerless (Optional), Notch, Receipt"
Media Width"XM7-40: 50 ~ 112 mm (1.97 ~ 4.41 inch)XM7-20: 25~58 mm (1.0~2.28 inch)"
Media Roll Diameter"XM7-40: Up to 66mmXM7-20: Up to 57mm"
Media Thickness"XM7-40: 0.07~0.15mmXM7-20: 0.07 ~ 0.19mm"
Media Inner Core19mm, 12mm
Supply MethodEasy Paper Loading
Physical Characteristics
"Dimensions(WxDxH)""XM7-40: 158 × 186 × 82 mm (6.23 × 7.33 × 3.23 inch)XM7-20: 168.2 x 92.9 x 69.2 mm (6.62 x 3.66 x 2.72 inch)"
Weight"XM7-40Including battery: approx.1,090 g (2.41 lbs)Paper : approx. 360 g (0.79 lbs)XM7-20Including battery: 600g (1.32 Ibs.) Paper : 120g (0.26 Ibs.) "
Electrical"USB Type-C Power delivery charging support, EnergyStar CertifiedXM7-407.2 V Li-ion, 6800 mAh (Nominal) Smart Battery, RechargeableXM7-20Standard: 7.3 V Li-ion, 2850 mAh (Nominal), Rechargeable,Optional: 7.2 V Li-ion 3400 mAh (Nominal) Smart Battery, Rechargeable"
PeelerSupported
Paper guideYes (Inner core: 19mm)
DisplayTFT LCD(IPS, 240 x 320 pixels)
Performance Characteristics
Memory"128 MB SDRAM, 256 MB Flash 256 MB SDRAM, 512 MB Flash (Optional)"
Interface"Standard: USB V2.0 HS + Serial Optional: USB V2.0 HS + Serial + Bluetooth / WLAN / Dual (Bluetooth + WLAN)---------------------------------------------------Bluetooth: V5.0 (MFi certified)WLAN: 802.11a/b/g/n (Infrastructure, Ad-hoc, Wi-Fi Direct, SoftAP) - WEP40/104, WPA1/2 (PSK, EAP) -----------------------------------------Easy Bluetooth Pairing™ via NFC"
Environment Characteristics
Temperature"Operating: -15 ~ 50℃ (5 ~ ~ 122℉)Storage: -30 ~ 70℃ (-22 ~ 158℉)"
HumidityOperating: 10 ~ 80% RH
SealingIP54
Drop Rate"XM7-40: 1.8 m (6 ft.)XM7-20: 2.1 m (7 ft.)"
Software
EmulationSLCS, BPL-Z™, BPL-C™, BXL / POS
Driver/Utility"Windows Driver (Europlus/Seagull)Linux / Mac CUPS DriverVirtual COM USB DriverUtility ProgramLabelArtist-II™Bartender ULOPOS/JPOS DriverSAP® Device Driver"
SDK/Plugin"Android/iOS/Windows SDKLinux SDKChrome SDKXamarin SDKCordova Plugin"
Application"Label Artist™Mobile (Android,iOS)mPrint App (Android, iOS)mPrint Server (Windows, Android, iOS)"
MDM(Optional)BIXOLON Profile Manager - XPM™, XCM™ (Windows, Android)
Fonts/Graphics/Symbologies
Fonts10 SLCS / One SLCS / 16 BPL-Z™ / One BPL-Z™ / 7 BPL-C™ / 23 Code Page / Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
GraphicsSupporting user-defined fonts, graphics, formats, layouts and logos
Barcode Symbologies"1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8,Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC/EAN extensions, UPC-A, UPC-E, IMB2D: Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, TLC 39"
Accessories
Standard"XM7-40: Belt Strap, Smart Battery, SMPS, Power Cord, Paper Disk (Inner core : 12mm)XM7-20: Belt Strap, Battery Pack, SMPS, Power Cord, Paper Disk (Inner core : 12mm)"
Optional"XM7-40: Shoulder Strap, Single Battery Charger, Quad Battery Charger, Serial/USB Cable, Fixed Serial/USB CableXM7-20: Shoulder Strap, Single Battery Charger, Quad Battery Charger, Serial/USB Cable, Fixed Serial/USB Cable, Ram mount Vehicle-Holder, Vehicle Charger, 4 Slot Ethernet Cradle (10/100Mbps), Vehicle-Holder, Protective Case"
Integrated Card Reader (Optional)
MSR
SCR
Supplies
B-linerless™ : BIXOLON's flexible and ecological linerless label consumables

Industries

Healthcare

Patient Verification
Point of Care
Pharmacy & Lab

Retail

Instore Operations
Supply Chain
Direct Selling

Hospitality

Food & Beverage
Sport/Enter/Leisure

Government

Postal/Courier
Education
Public Safety/Utilites
Administration

Manufacturing

Field Operations
Plant Operations
Warehousing
